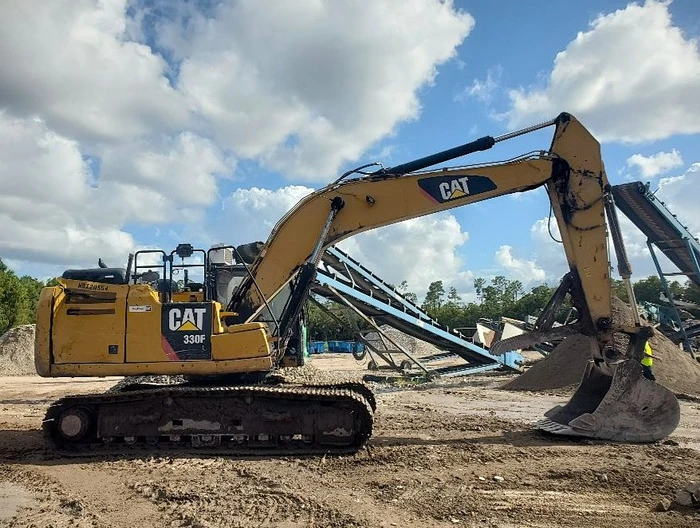

2016 Caterpillar 330FL Excavator Specs and Buying Guide The Caterpillar 330FL Excavator occupies a useful middle ground in the Cat lineup. It is heavy enough to move serious dirt on production work, precise enough for trenching and utility digs, and documented well enough that a buyer can walk into a deal knowing exactly what the machine should weigh, how it should travel, and which systems deserve the closest inspection. For a 2016 model, most of the buying decision comes down to condition, hours, and how the machine was maintained by its previous owner. Cat positions the 330 family as a balance of control, digging, trenching, and lifting capacity at lower hourly operating costs. That framing matters for contractors comparing a used 330FL against newer iron or against a smaller excavator that would force more passes on the same job. The sections below pull together the published specifications for the machine and the practical questions that come up during a used purchase. What the 330FL Is Built to Do The 330F L is a powerful, reliable, fuel-efficient machine. Caterpillar mates the C7.1 ACERT engine to its own hydraulic system, and that pairing is the foundation of how the excavator feels in the operator's hands. Smooth multi-function control is built in, which means boom, stick, bucket, and swing inputs blend together rather than fighting each other during a precision dig or a truck-loading cycle. For contractors, the practical value shows up in three places: production on bulk excavation, control on finish work such as trenching and grading, and lifting capacity when a pipe, vault, or precast section has to be set into place. Cat's own description of the 330 line emphasizes that balance rather than raw power alone, which is why the machine shows up across general construction, utility work, and site development rather than being pigeonholed into one niche. 2016 Caterpillar 330FL Specifications and Maximum Loading Height at a Glance The figures below come from published spec sheets for the 330F L. Multiple configurations are available, and attachments or boom-and-stick combinations can affect performance specifications such as digging depth and reach, so the final machine may differ from the standard listing. Always confirm the exact build with the seller and the machine's serial number plate before committing to a purchase. Specification Published Figure Standard operating weight 69,950 lb Engine model Cat C7.1 ACERT Net power 235 hp at 1,800 rpm Emissions compliance U.S. EPA Tier 4 Final / EU Stage IV Maximum travel speed 3.2 mph Maximum drawbar pull 55,528 lb Maximum gradeability 35 degrees / 70% Maximum digging depth 23.8 ft Maximum reach at ground level 35 ft maximum loading height 22.9 ft Shipping height 11.08 ft Fuel tank capacity 137.4 gal (520 L) Maximum hydraulic system flow 130 gal/min (493 L/min) Track length 15.92 ft Ground clearance 1.58 ft Reach boom 6.15 m (20'2") Stick (example configuration) R3.2cb2 (10'6") The 69,950 lb operating weight is the number that drives most of the logistics around a 330FL, but published operating weight across configurations ranges from 64,220 lb to 69,950 lb. It sets the trailer class, the permit discussion, and the kind of ground the machine can safely work on. Because that figure can shift with attachments and configuration, a buyer should treat the standard weight as a starting point and ask for the actual working weight of the specific unit being sold. The long undercarriage also improves stability and traction. Engine, Emissions, and Fuel Strategy The C7.1 ACERT engine in the 330F L meets U.S. EPA Tier 4 Final and EU Stage IV emission standards. Cat built the aftertreatment package to work behind the scenes without interrupting the job process, which matters on a machine that may run a full shift without a break in production. Integrated electronics, fuel, air, and aftertreatment management reduce fuel consumption and emissions while extending service intervals. Two details from Cat's own materials are worth remembering during an inspection. First, the diesel particulate filter requires no maintenance, so a used buyer should not expect a DPF cleaning line item in the service history. Second, the machine can run on up to B20 biodiesel when blended with ultra-low-sulfur diesel, which gives owners some flexibility on fuel sourcing. A 2016 unit listed for sale has been documented running on mechanical ultra-low-sulfur diesel, and confirming what fuel the previous owner actually used is a reasonable question to ask. Power Modes and Lifting Control Three power modes let the operator manage fuel consumption against the demands of the task: High, Standard, and Eco. These settings change how the machine responds, and the right choice depends on whether the priority is maximum production, everyday digging, or stretching a tank across a long shift. On a used machine, verify that all three modes engage and that the display responds correctly, since a fault there can point to sensor or wiring issues that are easy to overlook in a short demo. The hydraulic system uses advanced technology to support smooth, precise control. Heavy lift mode increases maximum pressure while reducing engine speed and pump flow to improve controllability. That combination is what makes setting structures and pipe feel steady rather than jerky. Enhanced hydraulic performance also contributes to exceptional breakout forces and faster cycle times. If the machine's primary work involves lifting rather than mass excavation, spend time in heavy lift during the inspection and watch for drift, hesitation, or unusual noise from the hydraulic system. It also features Cat Connect technology with built-in support for telematics and efficiency monitoring. Transport and Travel Considerations With a maximum travel speed of 3.2 mph and a maximum drawbar pull of 55,528 lb, the 330FL moves around a site under its own power at a walking pace but climbs grades up to 35 degrees or 70 percent. Track length of 15.92 ft gives the machine a long footprint for stability, and ground clearance of 1.58 ft affects how it handles uneven or debris-strewn ground. Moving the excavator between jobs is a separate planning exercise. The published operating weight and track length should be matched against the trailer and hauling equipment available, and any permit or escort requirements should be checked with the appropriate local authority. Those rules vary by jurisdiction, so a buyer should confirm them directly rather than rely on a general rule of thumb. Some sellers can help coordinate transport, and that is worth asking about early in the conversation. What to Check on a Used 2016 Unit A 2016 model has had time to accumulate wear, and the inspection should reflect that. Work through the following before money changes hands: Confirm the serial number on the plate against the listing, the paperwork, and any service records provided. Review hour meter readings against maintenance documentation. A 2016 330FL listed for sale carried 3,347 hours and serial number MBX00195, which shows the range these machines can sit in after several years of ownership. Inspect the undercarriage closely, including track shoes, links, rollers, and idlers, since undercarriage work is among the most expensive repairs on a tracked excavator. Look for hydraulic leaks at cylinders, hoses, fittings, and the pump area, and operate the machine long enough to reach working temperature. Cycle every function, including boom, stick, bucket, swing, and travel, and listen for unusual noise or hesitation. Check that the emissions system shows no active faults and ask for any related service history. Verify the condition of the cab, controls, and display, since operator comfort affects daily productivity more than many buyers expect. Confirm which attachments and buckets are included, because those items carry real replacement value. Market Pricing and Availability Used 330FL pricing varies with hours, condition, attachments, and region. One documented 2016 example, listed by Holt Cat with 3,347 hours and serial number MBX00195, carried a stock price of $113,400 USD. That figure gives a useful reference point, though it should not be treated as a benchmark that applies to every machine. A unit with a fresh undercarriage or extra buckets will command more than one that needs track work. Availability is another factor. Inventory counts for the 330FL shift as machines sell and new listings arrive, and one marketplace page at a given moment showed 11 new and used 330FL track excavators. Buyers who are serious about a purchase should set up alerts, watch listings closely, and be ready to move when the right machine appears rather than waiting for a perfect unit that may never surface. Buying and Selling Through Ironmartonline Ironmartonline is a web-based marketplace connecting buyers and sellers of used heavy equipment, trucks, and machinery. Sellers list equipment across nine platforms to reach millions of potential buyers, with no contracts or hidden fees. The inventory spans excavators, wheel loaders, dozers, motor graders, backhoes, forklifts, dump trucks, trailers, crushers, screeners, pavers, rollers, trenchers, forestry chippers, feller bunchers, log skidders, and tub grinders, along with brand-specific listings that include used Caterpillar equipment. For buyers, financing options are available and listings typically spell out condition, hours, and location so a shortlist can be built quickly. For sellers, the model is straightforward: list the machine, reach a broad buyer base, and avoid long-term contracts. If you are comparing a 330FL against other machines in the same weight class, the published specifications above give you a fair basis for the comparison, and a documented inspection gives you the rest. Frequently Asked Questions How much does a Caterpillar 330FL Excavator weigh? The standard operating weight for a Caterpillar 330FL Excavator is 69,950 lb. That figure can vary depending on the machine configuration and the attachments fitted. Confirm the actual working weight of the specific unit with the seller before arranging transport, since trailer capacity and permit requirements depend on the real number rather than the published standard. What engine powers the 2016 Caterpillar 330FL? The 330F L uses the Cat C7.1 ACERT engine, paired with Caterpillar's hydraulic system. It meets U.S. EPA Tier 4 Final and EU Stage IV emission standards. The aftertreatment package is designed to operate without interrupting the job, and the diesel particulate filter requires no maintenance according to Caterpillar's published materials. Can the 330FL run on biodiesel? Yes. Caterpillar states the machine can run on up to B20 biodiesel when blended with ultra-low-sulfur diesel. That gives owners some flexibility in fuel sourcing without changing the underlying engine platform. Ask the seller what fuel has been used and request any fuel-related service records as part of your inspection. How fast does a 330FL travel, and what grades can it climb? Maximum travel speed is 3.2 mph, which is typical for a tracked excavator of this size moving under its own power. Maximum drawbar pull is 55,528 lb, and maximum gradeability is 35 degrees or 70 percent. Track length is 15.92 ft, giving the machine a long, stable footprint on uneven ground. What is a reasonable asking price for a used 2016 330FL? Pricing depends heavily on hours, undercarriage condition, attachments, and region. A documented 2016 330FL listed with 3,347 hours and serial number MBX00195 carried a stock price of $113,400 USD. Use that as one reference point, then compare several listings and factor in any immediate repairs the machine will need. If you're comparing listings or evaluating a used 330FL, ask questions, get answers, and share your thoughts before making a decision.
