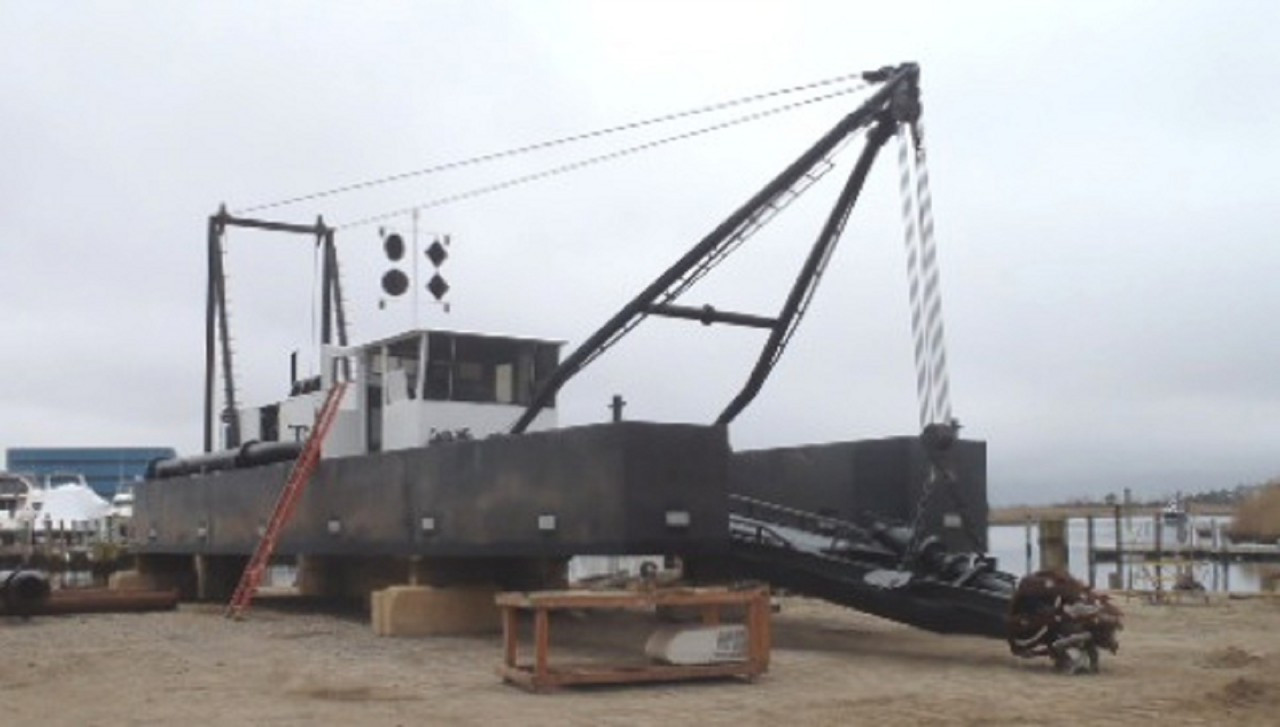

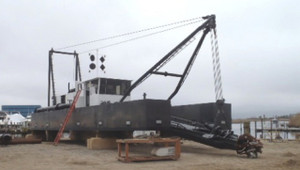

Ellicott Series 600 Dredge 16 Inch 1250 horsepower DMC Blade Cutter

Series 600 "Dragon" SN #13343
1250HP Detriot 16V-92 diesel
Main Dredge Pump:
Georgia Iron Works 18''x16" 42'' Impeller
Dimensions (Assembled):
60'x22'x13.8' (LxWxD)
72 Tons 135,000Lbs
Can Be Disassembled for Transport:
Five Trucks Required for Transport
Many More Details/Photos:
Scroll Down
Contact Jay Trevorrow:
Cutter System:
100hp 43'' 6 Blade DMC Hydra-Drive Oil Filled Bearing Housing

Product Description

dredgers | dredging equipment | dredger for sale | ironmartonline.com

Marine Dredge for Sale

The practice of dredging stretches back centuries,
and has many applications.

Beach restoration, coastal protection, mining,
the maintenance of ports and harbors,
the construction of marinas,
and even environmental remediation
would all be much more difficult without dredging technology.

Ellicott hasn't been there
for the entire history of dredging,

but they've made up for it in their 120-year history
with an unbroken string of innovations
that have changed the face of the industry.

While other companies can claim a similar longevity,
not many of them can point to machines

manufactured from the early 1900's through the 1940's
that are still in continuous use today.


This UD367 Ellicott Series 600 Dragon Model dredge
has been rebuilt by DMC.

Originally a 12-inch dredge,
it was refitted as a 16-inch during the rebuild.

The dredge pump is powered by a diesel
with v-belt drive and a manual disconnect switch.

The short-shaft underwater hydraulic drive
ensures efficient excavation of dredged material,

while the planetary drive hydraulic winches
provide effective swing operation and ladder hoist.

The 34' spuds are raised and lowered
by double-acting hydraulic cylinders,

and a 24V DC electrical system provides starting power
for the diesel engine as well as standby lighting
and bilge pump operation.


The powerplant on this dredge
is a 1250HP GM 16V-92 diesel that's heat exchanger cooled.

The main dredge pump has an 18" suction diameter
and a 16" discharge diameter.

The main hull has a welded box design,
reinforced in high-stress areas,
and measures 35'x10'x4.5'.

The pontoons are compartmentalized with watertight doors,
and can be removed for transport;
each one measures 60'x6'x5'.

The ladder, built of high-quality structural steel, is 36' long,
and the spuds are 34' long.

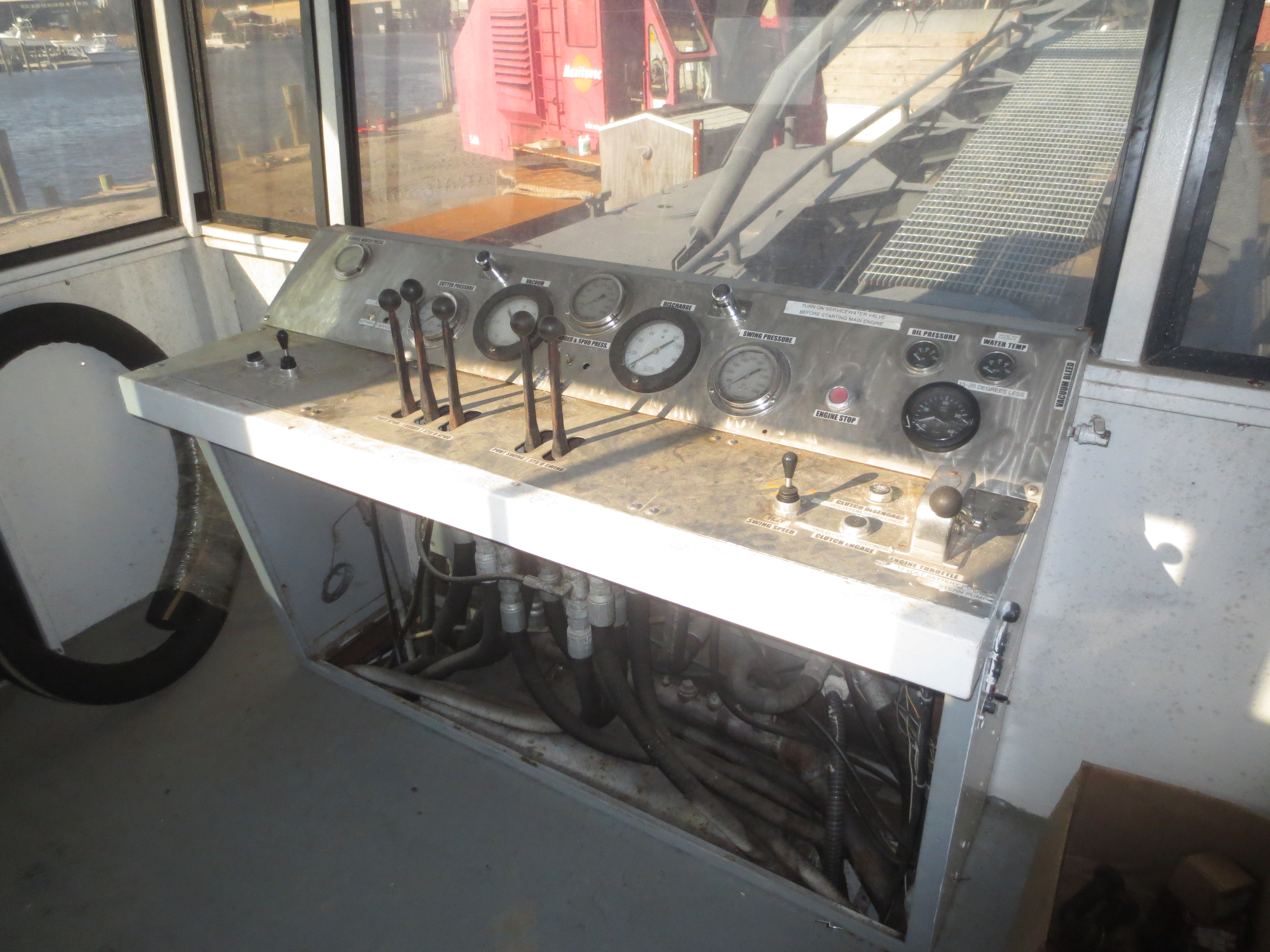

Controls are intuitive and logically laid out
in a spacious control area that affords a 360-degree view.

The repainting and safety equipment
have been done to meet or exceed USCG standards.


In addition to the refurb,
this dredge has been blasted and painted
by the current owner.

Fully assembled, the dredge measures 60'x22'x13.8'
and weighs 72 tons.

Luckily for you,
it's easy to disassemble,

although it takes five trucks to transport.
It's practically a steal at this price,

so we'd suggest calling to arrange an inspection
sooner rather than later.


This dredge is Located in Atlantic City, NJ 08401
We make every effort to accurately represent the condition
of all items advertised and or represented.

This machine is sold on an as-is basis,
with no warranty, express or implied.
(Standard selling Practice for the industry)

For this reason, we strongly encourage and support
a prebuy inspection of any item
before you purchase it.
