Description

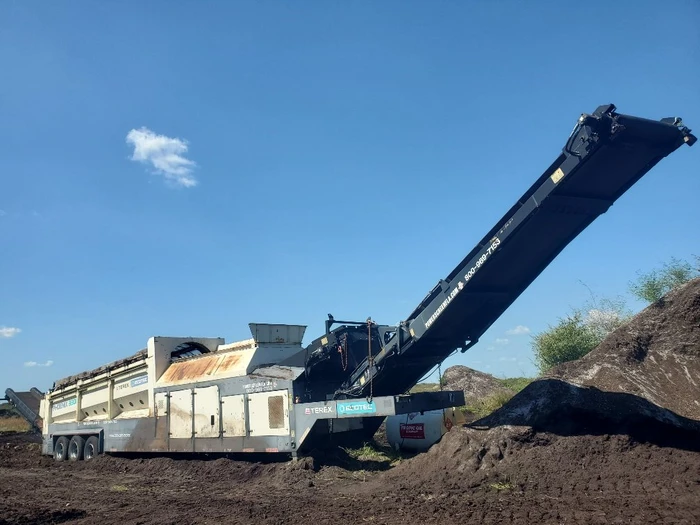

2021 TEREX ECOTEC PHOENIX 3300 Trommel Screener - Cat 173hp w/2600 hrs, 20ft Heavy-Duty Screening Drum 250-300 Tons Per Hour, Huge Machine-Huge Returns, Dominate All Your Recycling Jobs No Matter What Material It Is! Located in Naples, Florida 34117
Specs and Dims
Description Continued...
2021 Terex Ecotec Phoenix 3300: What to Check Before You Buy
Quick answer: The 2021 Terex Ecotec Phoenix 3300 is a track-mounted trommel screener built for high-volume material processing — topsoil, compost, mulch, and C&D debris. Before buying one, verify engine hours, screen drum condition, and maintenance records. A well-documented unit with low hours beats a cheap one with no paperwork every time.
What Does the Terex Ecotec Phoenix 3300 Do?
The Phoenix 3300 is a trommel screener. It separates bulk material by size using a rotating drum fitted with interchangeable screen media. Operators run topsoil, compost, mulch, sand, gravel, and construction and demolition (C&D) debris through it to produce graded, sellable product.
Terex Ecotec built the Phoenix 3300 for contractors, landscapers, recycling yards, and aggregate producers who need consistent throughput without babysitting the machine all day. Track mounting means it relocates across a yard or job site without a separate transport unit for short moves.
Why Does a 2021 Model Year Matter?
A 2021 build puts this unit well inside its useful service life, assuming it was maintained correctly. That's the operative condition — assuming. Model year tells you almost nothing on its own. Two 2021 units can sit at opposite ends of the condition spectrum depending on hours, operating environment, and how religiously the owner serviced it.
Don't buy on model year alone. Ask for the hour meter reading, then ask for the service log that backs it up. A 2021 unit with 1,500 hours and a complete maintenance binder tells a far better story than a 2021 unit with 3,500 hours and no records at all.
- Machine Class: Heavy-duty, high-capacity mobile wheeled trommel
- Drum Dimensions: 7' 7" Diameter × 30' 7" Length (2.32m × 9.31m)
- Total Weight: 82,673 lbs (approx. 37.5 tonnes)
- Engine Options: CAT C4.4 (173 HP / 129 kW) or CAT C7.1 (202 HP / 151 kW)
- Massive Screening Area: Features a large drum providing roughly 52m² (560 sq ft) of active screening area, maximizing material retention time and material separation.
- Radial Stockpiling: Outfitted with a 180-degree remote-controlled radial fines conveyor featuring a 19-foot (5.8m) discharge height to construct massive stockpiles without shifting the machine.
- Intelligent Feeding: Utilizes proportional load sensing and auto feeder speed control to dynamically adjust the hopper belt speed based on drum pressure, preventing blockages.
- Friction Drive System: Employs a low-maintenance, bi-directional 4-wheel drive friction drum drive system that eliminates traditional chain setups.
| Specification | Metric Value | Imperial Value |
|---|---|---|
| Operating Length | 32.23 m | 105' 9" |
| Operating Width | 15.75 m | 51' 8" |
| Transport Length | 21.1 m | 69' 2" |
| Transport Width | 3.0 m | 9' 10" |
| Transport Height | 4.1 m | 13' 6" |
| Hopper Capacity | 7.8 m³ | 10.2 yd³ |
- Drum Drive Wheels: Check the 4WD friction drive rollers for flat spots or heavy rubber wear.
- Screen Panels: Inspect whether it is fitted with mesh or punch plate panels, checking for sagging or tear damage.
- Conveyor & Remote Functionality: Fully test the 180° swivel mechanics via the radio remote control while running to guarantee no hydraulic drift or signal drops.
- Engine Hours & Tier: Confirm the specific CAT engine configuration (Tier 4F vs Stage V) to match local emissions compliance laws.
Where Should You Buy a Used Terex Ecotec Phoenix 3300?
Choose a dealer or marketplace that provides hour verification, maintenance history, and in-person or video inspection access. Choose a private sale only if you can inspect the machine yourself and have a mechanic confirm its condition before money changes hands.
If you're weighing a 2021 Phoenix 3300 against a newer model, run the comparison on total cost, not sticker price. A 2021 unit might save you tens of thousands upfront but could need belt or screen media replacement sooner. A newer unit costs more at purchase but delays those consumable costs. Pick the option that matches your budget and how hard you plan to run the machine.
FAQ
What does a Terex Ecotec Phoenix 3300 screen?
It screens topsoil, compost, mulch, sand, gravel, and C&D debris, producing graded material through its rotating drum and interchangeable screen media.
How much does a used 2021 Phoenix 3300 cost?
Pricing varies by hours, condition, and location. Request a current quote from the seller and confirm it against documented maintenance history before negotiating.
What are the biggest risks when buying this machine used?
Worn screen media, cracked conveyor belts, undercarriage wear, and missing maintenance records. Inspect all four before you make an offer.
Who is the Phoenix 3300 best suited for?
Contractors, landscapers, and recycling or aggregate operations that need high-volume, portable screening without investing in a stationary system.
Should you buy from a dealer or a private seller?
Choose a dealer if you want verified hours and inspection support. Choose a private sale only if you can inspect the unit yourself or bring a mechanic.
